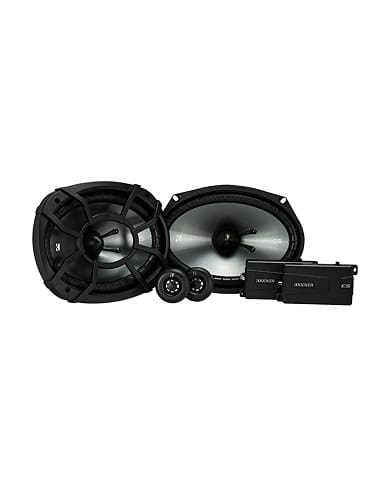

The CS-Series CSS69 6×9″ Component Speakers are engineered for clear, powerful sound and long-lasting performance. Featuring titanium tweeters, 12dB crossovers with a compact design, and a three-position tweeter level switch (0dB, +3dB, +6dB), these speakers let you fine-tune your highs while ensuring an easy, flexible installation in nearly any vehicle.
Built for both detail and depth, the CSS69 speakers include EVC™ technology for enhanced bass, phase plugs to reduce distortion, and UV-treated poly-foam surrounds for smooth, accurate cone movement. With a recommended power handling of up to 150 watts and multiple tweeter mounting options, they offer a complete, high-quality upgrade to your factory sound system.

• Woofer Size: 6×9 in (160×230 mm)
• Tweeter Size: ¾ in (≈20 mm)
• Tweeter Dome Material: Titanium
• Peak Power Handling (per set / per side):
  • 450 W peak per set
  • 450 W peak each side
• RMS (Continuous) Power Handling: 150 W per set / 150 W each side
• Impedance: 4 Ω
• Frequency Response: 30-21,000 Hz
• Sensitivity: 90 dB
• Woofer Mounting Hole Diameter: 5 5/8 × 8 7/16 in (143 × 215 mm)
• Woofer Bottom Mount Depth: 3 3/16 in (≈81 mm)
• Flush-Mount Tweeter Hole Diameter: 1 9/16 in (≈40 mm)
• Flush-Mount Tweeter Depth: 9/16 in (≈14.5 mm)
• Crossover Slopes: 12 dB/octave for high-pass & low-pass at ~ 4000 Hz
• Tweeter Output Levels (Attenuation): Switch selectable 0, +3, +6 dB
• Grilles: Steel mesh / bolt-thru grilles included
