Description

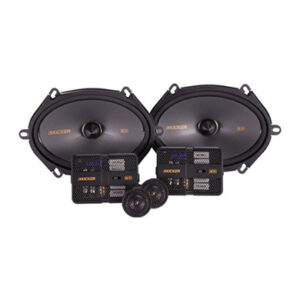

KICKER KS-Series Speakers deliver powerful, high-quality sound with the clarity and balance to satisfy even the most discerning listeners. Featuring polypropylene woofers with durable rubber surrounds and 25mm silk-dome tweeters, they produce precise midrange, smooth bass, and natural highs—ideal for both high-output and detailed listening.
Designed for flexibility, these speakers can be used as component or coaxial systems, thanks to a removable phase plug that allows the tweeters to swivel and tilt for improved off-axis performance. With a slim-mount design, compact crossovers, and multiple tweeter mounting options, the KS-Series offers easy installation and compatibility with a wide range of factory or custom setups. Recommended power handling is 15 to 125 watts.
- Woofer size: 6.5 in / 160 mm
- Tweeter size: 1 in / 25 mm (silk dome)
- Impedance: 4 Ω
- RMS Power Handling: 125 W
- Peak Power Handling: 250 W
- Frequency Response: 35 – 21,000 Hz
- Sensitivity: 91 dB (1 W/1 m)
- Top-mount depth: 1-13/16 in (≈ 46 mm)
- Bottom-mount depth: 2-3/16 in (≈ 54 mm)
- Cut-out (mounting hole) diameter: 4-7/8 in (≈ 123.8 mm)
- Mounting height (frame thickness above mounting surface): ~0.392 in (≈ 9.95 mm)
